HHI Dominator Touring Bike Swingarm  Kit

Tap for gallery


Product Information

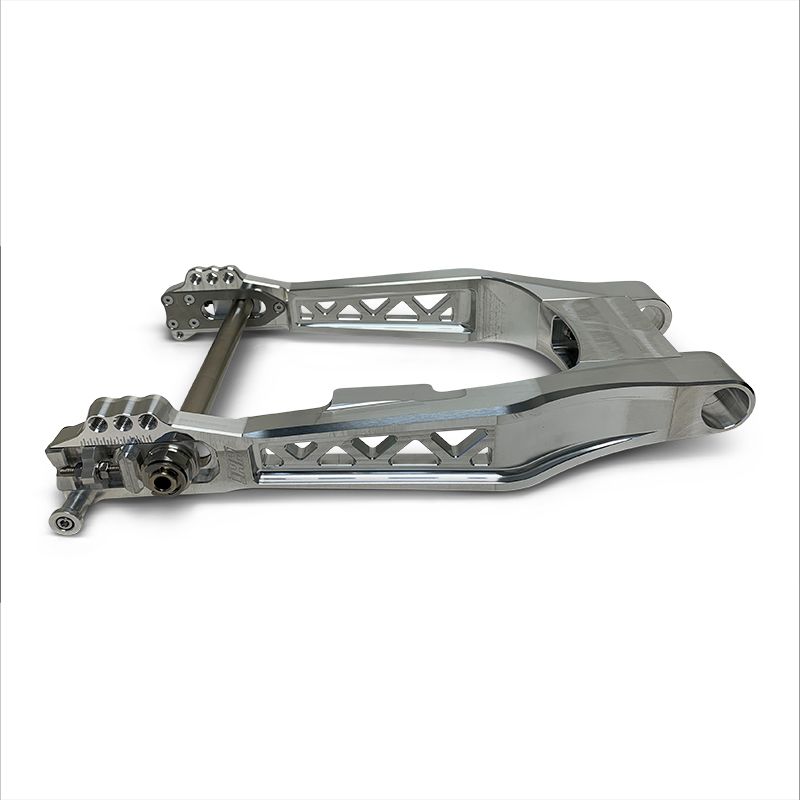

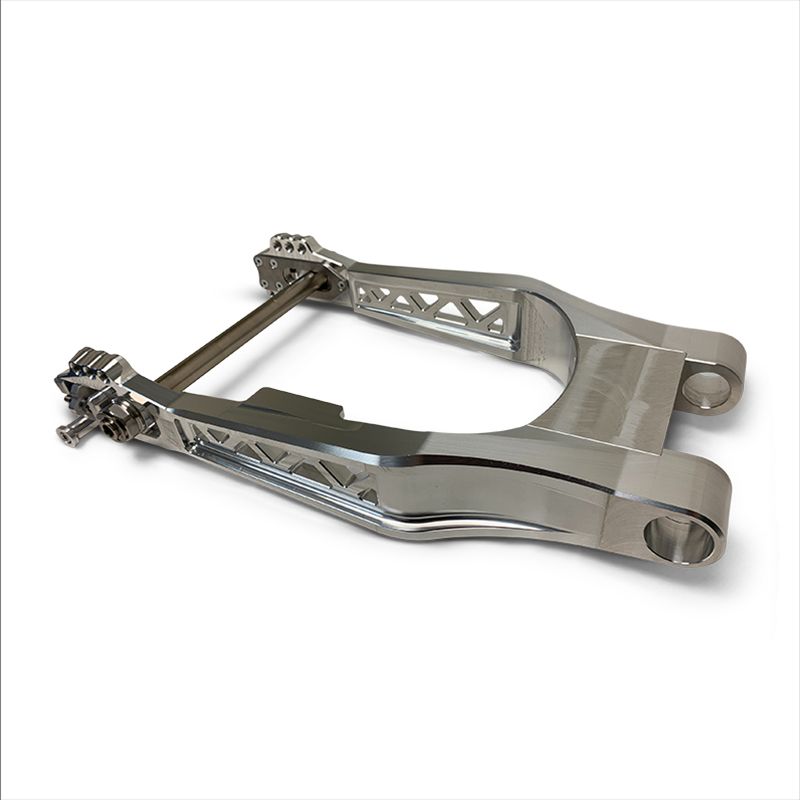

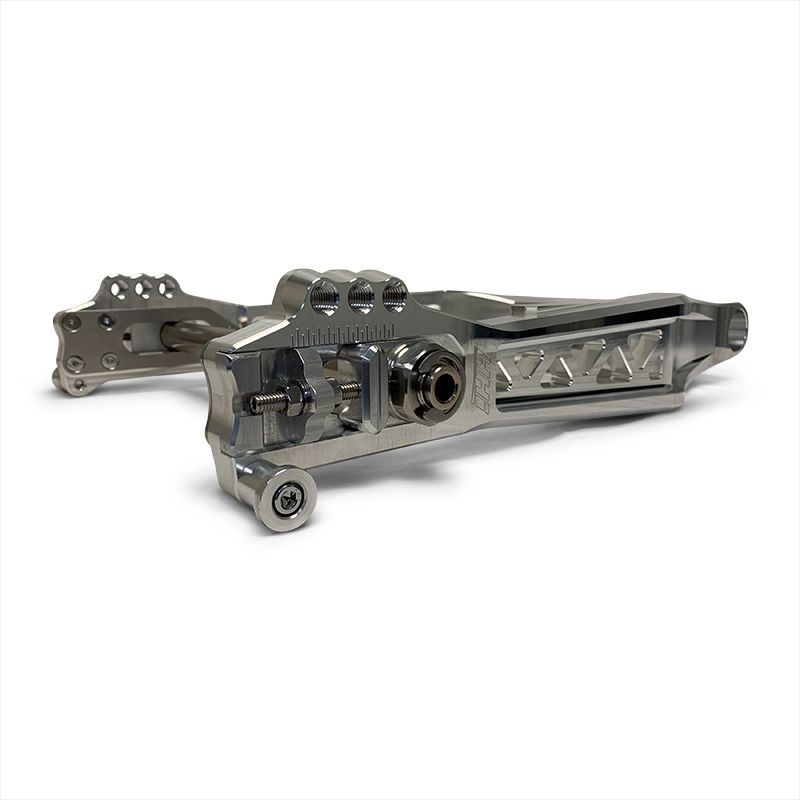

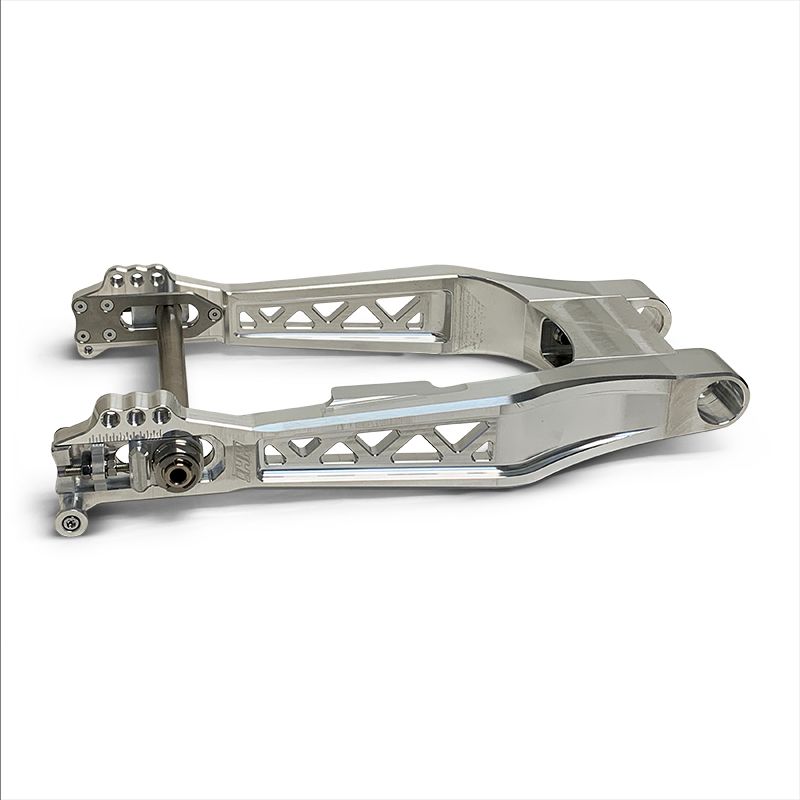

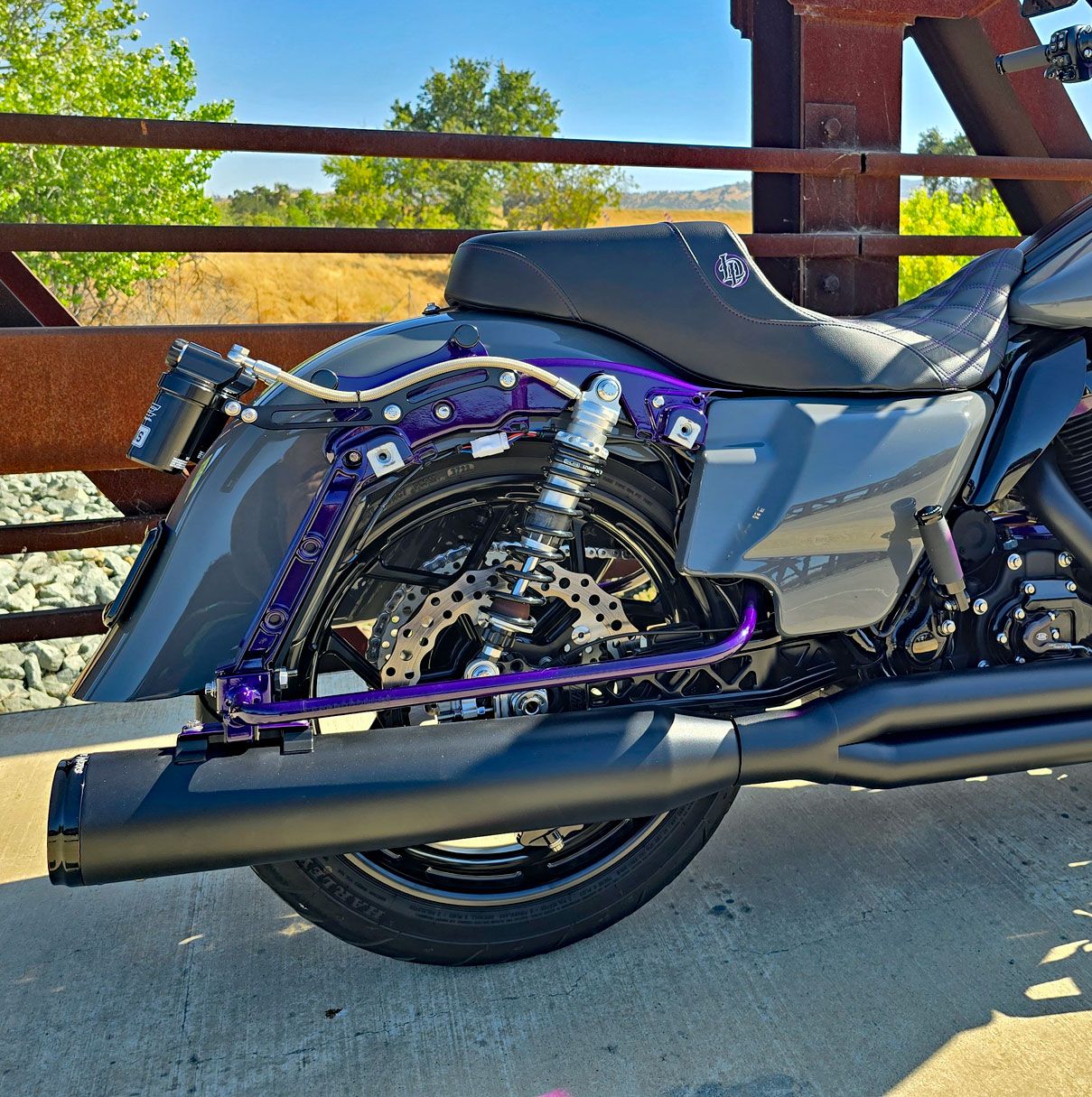

HHI Dominator Swingarm for the Performance Bagger.

All New Billet Swingarm fits H-D Touring models 2009 to present.

Ships fully assembled with pivot bearings and sleeves installed. A complete kit ready for installation.

  • Swingarm components feature precision machined 6061-T6 billet aluminum, Chromoly and Stainless steel.
  • The HHI Swingarm reduces weight by over 20% compared to stock swingarm.
  • The Main Swingarm is a three-piece design utilizing a massive interlocking, hi-strength keying feature. Thermal shrink fit of this key provides precision alignment, maximum strength and permanent construction.
  • Assembled with four hi-strength ARP ½” diameter 12 point polished stainless steel large flange bolts.
  • Swingarm designed to work with shocks ranging in length from 10" to 16".

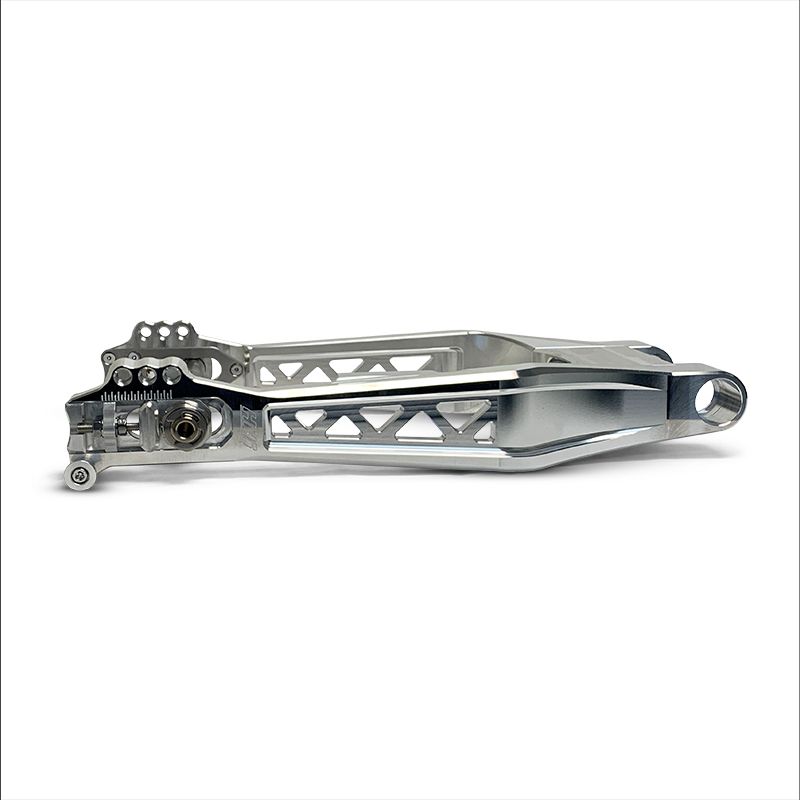

  • Positive lock adjustable position axle locator system delivers 2 inches of full axle slot adjustment (2.5x greater than stock).
  • Keyed axle locator plate eases axle installation.
  • HHI Exclusive stainless steel inner swingarm axle protector plates allow for maximum axle installation torque.
  • Protector plates prevent damage to swingarm billet inside faces and promotes positive axle position.
  • Multi-point shock mount system that adjusts from stock to +1/2 inch ride height.
  • Fits most shock brands without adding offset spacing and longer bolts.
  • Extreme strength lightweight Chromoly hollow axle made from 150ksi heat treated medium carbon steel alloy.
  • Precision machined for close tolerance fit and Nickel Plated for long lasting durability.
  • Includes custom machined Stainless Steel 36mm hex axle nuts.
  • Stainless steel stock type axle nut retaining clips supplied.
  • Integral brake mount designed for stock caliper and brake line

Available in Black, Inca Gold, & Machine finish.

For further information and to order call 1-877-442-5837 or send an email to

Are you building a Performance Bagger ?

Check out these links to popular HHI Performance Bagger options.

HHI / Renegade Replica & Custom Motorcycle Wheels,  click here

HHI  Custom Mid Control Conversion Kits,  click here

HHI 6 Piston Radial Calipers,  click here

HHI Dominator Triple Trees Stock Replacement , click here

Proudly Made in the USA








Product Code
ManufacturerHawg Halters, Inc.
OriginMade in USA
